Pb Acid to Iron-lithum
Lead Acid Replacement Battery
HT-12V100Ah
Lead Acid Replacement Battery
Model
HT-12100A
Nominal Capacity
100Ah
Nominal Energy
1280Wh
Nominal Voltage
12.8V
Charging Voltage
14.6V
Discharge Voltage
12V
Product Details

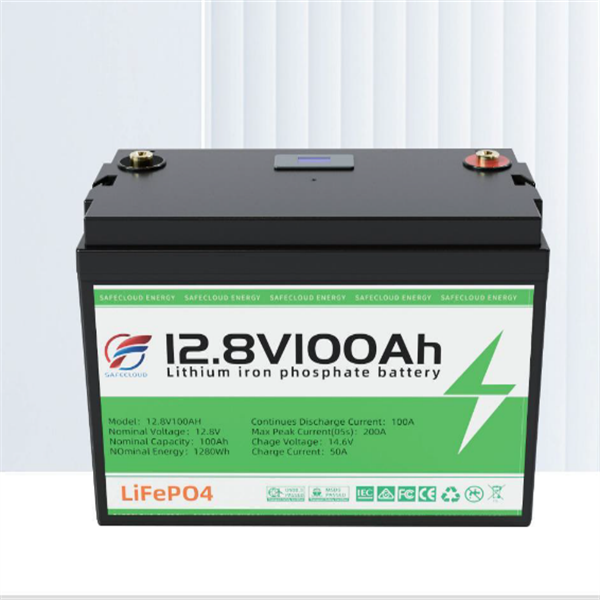

LeadAcid Replacement Battery
LiFeP04 Battery Pack
HT-12V100Ah
· Super long lifespan over 30o0cycles
· Smaller size,lighter weight,higher energy density,environmentally friendly Wide working temperature range, better temperatureperformance
.High efficiency,energy saving,stable power supply,high power output
· Support configuration of communication function to fulfil intelligent management
TechnicalParameter；
| Cell | 3.2V100Ah |
| Cell Series &Parallels | 4S1P |
| Charge Current | 100A |
| Discharging Current | 100A |
| Max. Discharge Current 2S | 200A |
| Max Discharge Power | 1000w |
| Operating Temperature | Charge0-50C； Discharge-20~60C |
| Cycle Life | ≥3000 Time |
| IP Class | IP50 |
| Dimensions | L307*W169*H208 mm |
| Weight | 10.5kg |
| Certificate | CE/FCC/UN38.3/MSDS |
