Pb Acid to Iron-lithum
LeadAcid Replacement Battery
HT-12V100Ah
LeadAcid Replacement Battery
Model
HT-12100B
Nominal Capacity
100Ah
Nominal Energy
1280Wh
Nominal Voltage
12.8V
Charging Voltage
14.6V
Discharge Voltage
12v
Product Details

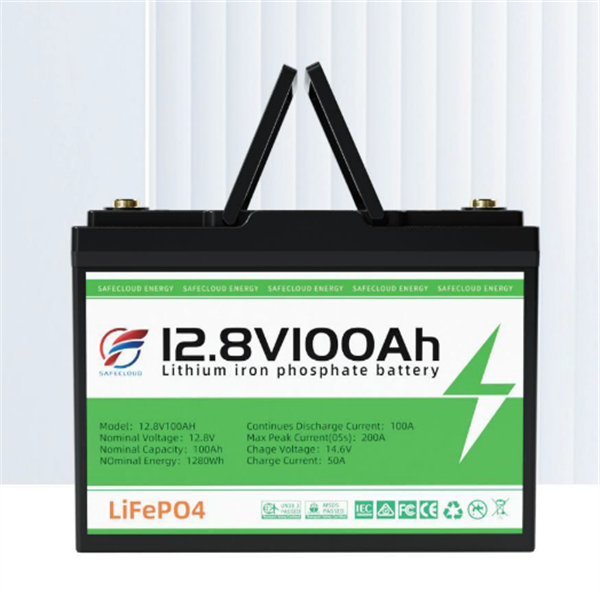

Lead Acid Replacement Battery
LiFeP04Battery Pack
HT-12V100Ah
. Super long lifespan over 3000cycles
. Smaller size,lighter weight, higher energy density,environmentally friendly Wide working temperature range,better temperature performance
·High efficiency, energy saving,stable power supply,high power output
·Support configuration of communication function to fulfil intelligent management
TechnicalParameter；
| Cell | 3.2V100Ah |
| Cell Series & Parallels | 4S1P |
| Charge Current | 100A |
| Discharging Current | 100A |
| Max. Discharge Current 2S | 200A |
| Max Discharge Power | 1000w |
| Operating Temperature | Charge0~50C;Discharge-20~60C |
| Cycle Life | 23000 Time |
| IP Class | IP50 |
| Dimensions | L330*W172*H215 mm |
| Weight | 10.5kg |
| Certificate | CE/FCC/UN38.3/MSDS |
