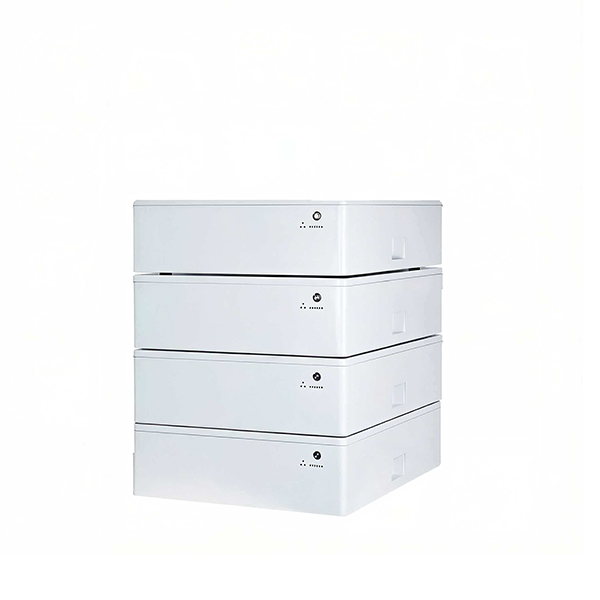

Energy Storage LiFePO4 Battery--Stackable Model
Energy Storage LiFePO4 Battery--Stackable Model
Humidity
5%~95% Relative humidity
Charging Temperature
0°C~60°C
Discharging Temperature
-20°C~60°℃
Storage Temperature
-10°C~30°C
Cycle Life
>6000 times（0.2C,@25°C,80%DOD）
Design Life
>10 years
Product Details
Product Features:
LFP (lithium iron phosphate) cellto ensure the highest safety.
Built-In BMS protects the cell such as temperature, current,voltage,SoC,SoH.
Extra long cycle life times with 6000 cycles with 80% DoD.
Compatible with most of the available inverters.
Possibility of parallel connection with up to 16 pieces.
Product list：
| Main Control Module | RPT-LFP |
| Battery Module | RPES-51.2V100-SM |
| Basic Parameters | |
| Battery Module NO. | 2 modules | 3 modules | 4 modules | 5 modules |
| Rated Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Usable Energy | 10240Wh | 15360Wh | 20480Wh | 25600Wh |
| Operating Parameters | |
| Output Voltage Range | 43.2V~57.6V |
| Charging Voltage | 52.5-57.6(recommend 56V) |
| Cut-off Voltage | 43.2V |
Max.Charging Current | 200A | 300A | 400A | 500A |
Recommended Charging Current | 50A | 100A | 200A | 200A |
Max.Discharging Current | 150A | 300A | 400A | 500A |
| Efficiency | >98% | >98% | >98% | >98% |
| Physical | ||||
| Dimension L*W*H(mm） | 635*500*312 | 635*500*465 | 635*500*620 | 635*500*772 |
| Weight (kg） | 90 | 140 | 220 | 260 |
