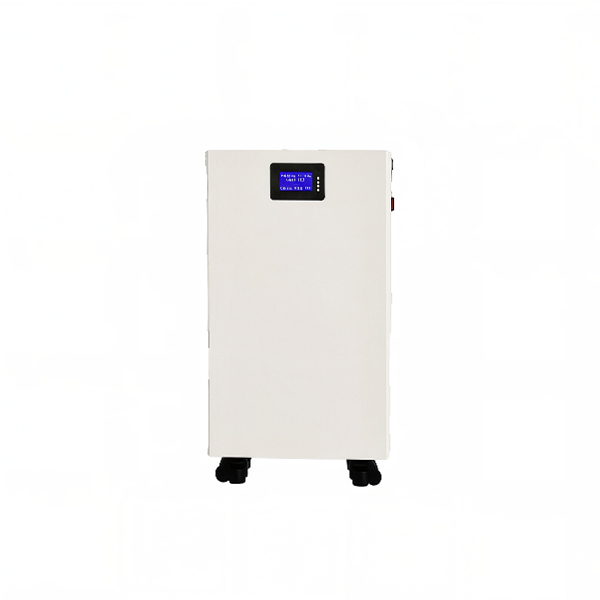

Energy Storage LiFePO4 Battery--Wheel Model
Energy Storage LiFePO4 Battery--Wheel Model
Humidity
5%~95% Relative humidity
Charging Temperature
O°C~60°C
Discharging Temperature
-20°C~60°C
Storage Temperature
-10°C~30°C
Cycle Life
>6000 times（0.2C,@25°C,80%DOD）
Design Life
>10 years
Product Details
Product Features:
LFP (lithium iron phosphate) cell to ensure the highest safety.
Built-In BMS protects the cell such as temperature, current, voltage, SoC,SoH.
Extra long cycle life times with 6000 cycles with 80% DoD.
Compatible with most of the available inverters.
Possibility of parallel connection with up to 16 pieces.
Product list：
| Model | RPES-51.2V200-WB |
| Basic Parameters | |
| Rated Voltage | 51.2V |
Rated Capacity (0.2°℃,@25°c) | 200Ah |
| Rated Energy | 10240Wh |
| Operating Parameters | |
Output Voltage Range | 43.2V~57.6V |
| Charging Voltage | 55.2-57.6(recommend 56V) |
| Cut-off Voltage | 43.2V |
Max. Charging Curren | 100A |
| Recommended Charging Current | 100A |
Max.Discharging Current | 100A |
| Efficiency | >98% |
| Physical | |
Dimension L-W-H(mm） | 400*240*650 |
| Weight (kg） | 84 |
