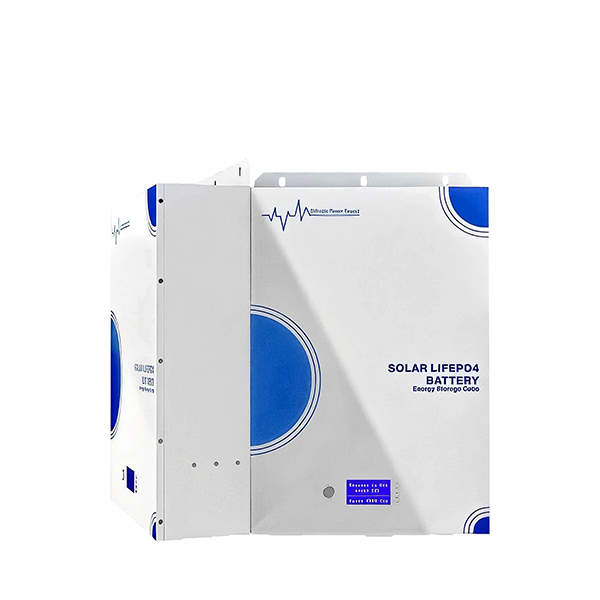

Energy Storage LiFePO4 Battery---Wall Box Model
Energy Storage LiFePO4 Battery---Wall Box Model
Humidity
5%~95% Relative humidity
Charging Temperature
O°C~60°C
Discharging Temperature
-20°C~60°C
Storage Temperature
-10°C~30°C
Cycle Life
>6000 times（0.2C,@25°C,80%DOD）
Design Life
>10 years
Product Details
Product Features:
LFP (lithium iron phosphate) cellto ensure the highest safety.
Built-In BMS protects the cell such as temperature, current,voltage,SoC,SoH.
Extra long cycle life times with 6000 cycles with 80% DoD.
Compatible with most of the available inverters.
Possibility of parallel connection with up to 16 pieces.
Product list：
| Model | RPES-48V100-WM1 | RPES-48V200-WM1 |
| Basic Parameters | ||
| Rated Voltage | 48V | 48V |
Rated Capacity (0.2°℃, @25°c) | 100Ah | 200Ah |
| Rated Energy | 4800Wh | 9600Wh |
| Operating Parameters | ||
Output Voltage Range | 42V~54V | |
| Charging Voltage | 52.5-54(recommend 56V) | |
| Cut-off Voltage | 42V | |
Max.Charging Current | 100A | 100A |
Recommended Charging Current | 50A | 50A |
Max.Discharging Current | 100A | 100A |
| Efficiency | >98% | >98% |
| Physical | ||
Dimension L*W*H(mm） | 400*629*160 | 400*640*223 |
| Weight (kg） | 53 | 85 |
