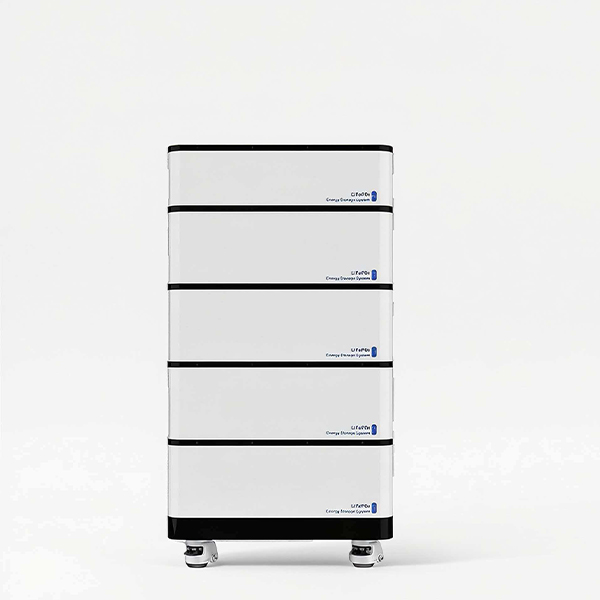

Stackable All-In-One ESS
Stackable All-In-One ESS
BatteryVoltage/Range
46.7-57V
Maximum Charging Power
5000W
Maximum Charging Current
60A
Maximum Discharging Power
5000W
Maximum Discharging Current
100A
Product Details
Product Features:
Cobalt-Free Lithium Iron Phosphate Battery(LFP) with safety,longer lifespan,
high power&energy density,light weight,intelligent BMS with providing
complete protection.
Integrating with off-grid inverter, battery bank built in BMS toavoid
communication compatibility problem.
LCD display show the information about the equipment within real time for
fast monitoring.
Flexible capacity scalability,Max.6 units in parallel,Max.Capacity of30.72kWh.
Product list：
| Main Control Module | RPT-LFP |
| Battery Module | RPSESS-51.2V100-AC |
| Basic Parameters | ||||
| Battery Module NO. | 3 modules | 4 modules | 5 modules | 6 modules |
| Rated Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Usable Energy | 15360Wh | 20480Wh | 25600Wh | 30720Wh |
| Off-grid Inverter | ||
Rated Output Voltage (Vac) | 230Vac/50Hz | 120Vac/60Hz |
| Rated Output Power | 5KW | |
| Maximum Peak Power | 10KVA | |
Maximum AC Charge Power | 3150W | 2100W |
AC Charging Current Range | 0~60A | 0~40A |
Input Voltage Range | 90~280Vac | 90~140Vac |
| Rated Output Power | 5KW | |
Maximum Output Current | 30A | |
| Output Frequency | 50Hz | 60Hz |
| Overload Current | 35A | 55A |
| Solar Charge Type | MPPT |
Maximum PV Array Power | 5KW |
PV Charging Current Range | 0~80A |
MPPT Voltage Range | 120~450V |
