ESS energy storage

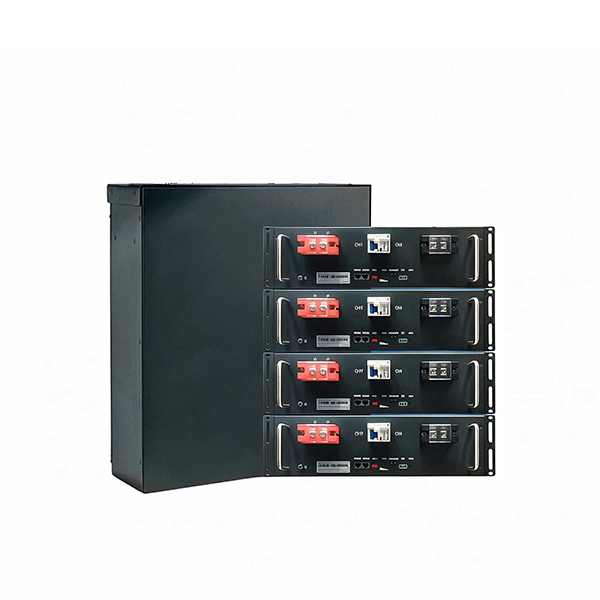

Telecom LiFePO4 Battery
Telecom LiFePO4 Battery
Humidity
5%~95% Relative humidity
Charging Temperature
O°C~60°C
Discharging Temperature
-20°C~60°C
Storage Temperature
-10°C~30°C
Cycle Life
>6000 times（0.2C,@25°C,80%DOD）
Design Life
>10 years
Product Details
Product Features:
LFP (lithium iron phosphate) cell to ensure the highest safety,high energy density,wide temperature range, longer cycle life.
Built-In BMS protects the cell such as temperature, current,voltage,SoC,SoH. Supports RS485,RS232,CANBUS for communication.
Compact modular design for maximum capacity flexibility, minimize installation time and cost. Possibility of connection in parallel with up to 10 pieces.
Product list：
| Model | RPTB-48V50-RM | RPTB-48V100-RM | RPTB-48V150-RM | RPTB-48V200-RM |
| Basic Parameters | ||||
| Rated Voltage | 48V | 48V | 48V | 48V |
Rated Capacity (0.2°℃，@25°c) | 50Ah | 100Ah | 150Ah | 200Ah |
| Rated Energy | 2400Wh | 4800Wh | 7200wh | 9600Wh |
| Operating Parameters | |
Output Voltage Range | 42.0V~54.0V |
| Charging Voltage | 52.5-54(recommend 53V) |
| Cut-off Voltage | 42V |
Max. Charging Current | 50A | 100A | 100A | 100A |
Recommended Charging Current | 25A | 50A | 50A | 50A |
Max.Discharging Current | 50A | 100A | 100A | 100A |
| Efficiency | >98% | >98% | >98% | >98% |
| Physical | ||||
| Dimension L*W*H(mm） | 450*442*135 | 480*442*155 | 480*442*226 | 680*442*222 |
| Weight (kg） | 28 | 45 | 45 | 45 |
