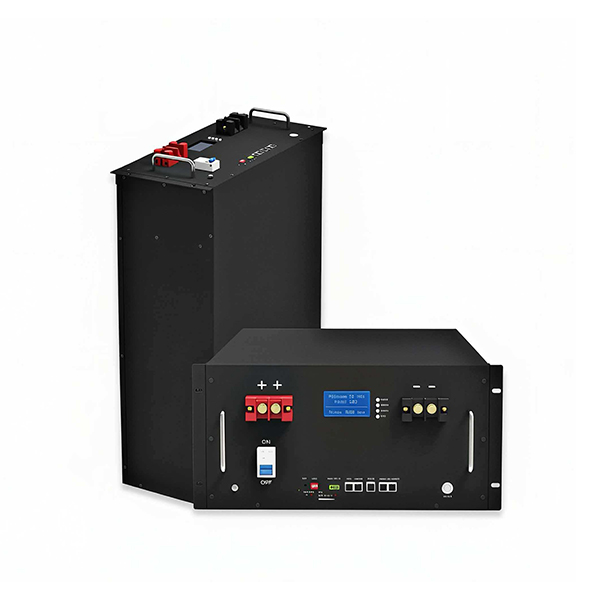

Energy Storage LiFePO4 Battery---Rack Model
Energy Storage LiFePO4 Battery---Rack Model
Humidity
5%~95% Relative humidity
Charging Temperature
O°C~60°C
Discharging Temperature
-20°C~60°℃C
Storage Temperature
-10°C~30°C
Cycle Life
>6000 times（0.2C,@25°C,80%DOD）
Design Life
>10 years
Product Details
Product Features:
LFP (lithium iron phosphate) cell to ensure the highest safety.
Built-In BMS protects the cellsuch as temperature,current,voltage,SoC,SoH.
Extra long cycle life times with 6000 cycles with 80% DoD.
Compatible with most of the available inverters.
Possibility of parallel connection with up to 16 pieces.
Product list：
| Model | RPES-51.2V100-RM | RPES-51.2V200-RM |
| Basic Parameters | ||
| Rated Voltage | 51.2V | 51.2V |
Rated Capacity (0.2°℃,@25°c) | 100Ah | 200Ah |
| Rated Energy | 5120wh | 10240Wh |
| Operating Parameters | |
Output Voltage Range | 43.2V~57.6V |
| Charging Voltage | 55.2-57.6(recommend 56V) |
| Cut-off Voltage | 43.2V |
Max.Charging Current | 100A | 200A |
Recommended Charging Current | 50A | 100A |
| Max.DischargingCurrent | 100A | 100A |
| Efficiency | >98% | >98% |
| Physical | ||
Dimension L*W*H(mm） | 480*442*155 | 680*442*222 |
| Weight （kg） | 47 | 82 |
